ELECTROMOBILITY Bosch starts production of 800-volt SiC technology for electric vehicles

From Bosch (Press release) Reading Time: 3 min

Related Vendors

Two of the things most drivers of electric vehicles wish for are efficient driving and the shortest possible recharging time. Bosch is now starting the production of new powertrain solutions based on 800-volt technology. This will make recharging faster and provide a further boost for electromobility.

Silicon carbide chips increase the efficiency of the power electronics to as much as 99 percent.
Silicon carbide chips increase the efficiency of the power electronics to as much as 99 percent.

“Bosch is upping the voltage in electromobility. Our 800-volt technology is the next step toward more powerful electrical powertrains and shorter recharging times,” says Ralf Schmid, the executive vice president responsible for electrification in Bosch’s Powertrain Solutions division. The 800-volt version of the inverter is based on silicon carbide (SiC) semiconductors. These increase efficiency, and thus also range. In the 800-volt variant of the electric motor, Bosch has increased the power density. This reduces weight and allows for a more compact design. A premium German automaker is now using the active parts of this powertrain, i.e. the rotor and stator, for the first time.

50 percent less heat loss with SiC technology

In recent years, 400-volt solutions have become widely established as the industry standard. With the same current, but double the voltage, twice as much power can now be transmitted. This modification allows for thinner cables, which saves on space, weight, and copper. As a result, the inverter is more compact and powerful. With a 400-volt onboard network, the maximum charge power at charge spots that are powerful enough is 250 kilowatts. With 800 volts, twice this is possible in theory.

In addition, the inverters feature SiC chips, in which carbon atoms have been introduced into the crystalline structure of the ultrapure silicon. This improves the semiconductors’ electrical conductivity. In power electronics, moreover, 50 % less energy is lost in the form of heat. The SiC chips have even more energy-saving potential to offer: for example, they increase the inverters’ efficiency to as much as 99 %.

35 percent greater power density thanks to new winding technology

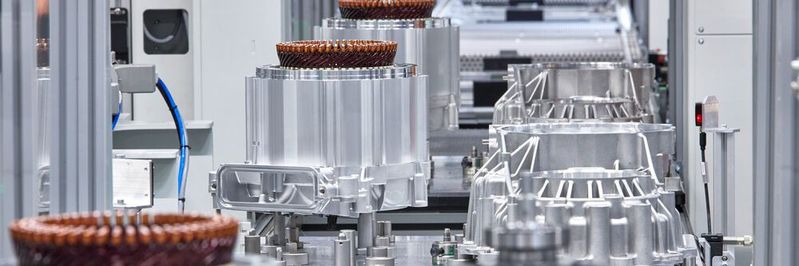

The standout features of the 800-volt variant of the Bosch electric motor now going into volume production are 830 Nm torque and 460 kilowatts output. Thanks to the use of I-pin bar winding, the motor’s efficiency, compactness, and level of automation in production can be further improved. In terms of power-to-weight ratio, this delivers 35 % more power density, at 60 kilowatts per kilogram. On top of this, it offers an excellent torque density of 105 Newton meters per kilogram. This means that the Bosch motor achieves a maximum efficiency of up to 98 %. The next generation of the electric motor will feature oil cooling. This will allow the heat generated in the electric motor to be drawn away better, and ensure continuously powerful operation over long distances, as well as in commercial vehicles.

Extensive portfolio, from components to systems

Bosch offers an innovative and extensive product portfolio, ranging from semiconductors to its complete powertrain units known as e-axles. Along the entire value chain, customers get the products they need for hybrid and electric vehicles – from passenger cars to trucks – from a single source. Bosch has now manufactured more than 3.5 million electric motors, and the same number of inverters. With engineering and manufacturing locations in the major markets, Bosch operates close to its customers around the world.
