DEWETRON presents the NEX[DAQ] – the robust and compact DAQ system

Reading Time: 3 min

DEWETRON presents their new product development: the NEX[DAQ]. With it, the Austrian company expands its product portfolio with a versatile data measuring device that is also compact and robust. Thus, it is the MUST-HAVE for every measurement and maintenance engineer with service, maintenance, monitoring or RnD tasks.

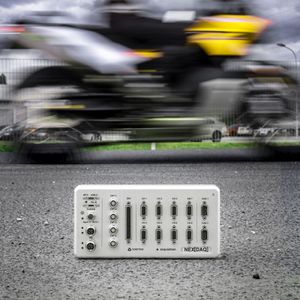

The robust DAQ system has 4 expandable and 8 simple input channels as well as 2 CAN-FD inputs.
The robust DAQ system has 4 expandable and 8 simple input channels as well as 2 CAN-FD inputs.
(Source: Dewetron)

Robust, versatile and compact – these are the advantages of the NEX[DAQ]

“When developing the NEX[DAQ], it was important to us that it is compact, but also robust – and thus universally applicable. It was therefore obvious that it had to withstand both very high and very low temperatures. But also water, dust and dirt should not harm our new product development. For this reason, the NEX[DAQ] is protected according to IP67 and therefore fanless,” says Christoph Wiedner, CEO of DEWETRON.

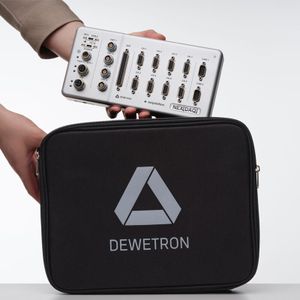

The NEX[DAQ] – the ideal travel companion for measurement technicians

Because of its small size and weight, the NEX[DAQ] is the ideal travel companion for engineers and troubleshooters. When connected to the USB-C or Ethernet interface of any PC, the NEX[DAQ] becomes a powerful measurement system for analog, digital, counter and CAN bus data acquisition.


The most important technical facts about the NEX[DAQ]

It is an 8-channel front-end available in both 1 MS/s and 200 kS/s versions with 24-bit resolution. By default, it offers multiple power supply options for easy and worry-free use in any situation. Thus, it can be powered up with any simple power adapter via the USB-C PD connector, but also with a standard smartphone power bank (12 VDC). Other ways to power the NEX[DAQ] are either via the Lemo jack or via Power-over-Ethernet via the PoE switch.

The robust DAQ system has 4 expandable and 8 simple input channels as well as 2 CAN-FD inputs. The NEX[DAQ] offers a very powerful and versatile sensor supply with freely programmable supply voltages. It natively supports voltages up to 100 V as well as full and half bridge sensors. In addition, almost any sensor can be connected to the NEX[DAQ] via the MSI sensor adapters. This allows measurements of voltages up to 600 V, vibrations, temperatures, strain voltages, sound pressure, pressure, speed and much more.

When purchasing a NEX[DAQ], DEWETRONs in-house measurement software OXYGEN is also included. This runs on any conventional Windows PC but also on a Linux system. In addition, it ensures fast setup, precise data recording and fast generation of meaningful reports, e. g. as PDF.

The NEX[DAQ] data acquisition system is distributable. If 8 channels are not enough, multiple NEX[DAQ] units can be daisy-chained to a multi-channel system at any time. A single cable is sufficient for data transfer and synchronization via Ethernet PTP/IEEE1588.

The NEX[DAQ] is the perfect fit for everyday measurement needs like mobile and autonomy testing in the vehicle, integrated in real-time on the test bench, portable in service applications or permanently installed in monitoring applications, and many more.

Further information about the NEX[DAQ] can be found:


DEWETRON is an Austrian manufacturer of precise test & measurement systems. The company was founded in 1989 as a supplier of PC components and measuring instruments. Already at that time DEWETRON saw great potential for improvement of existing solutions and started the production of own measurement systems and software. Since then, DEWETRON has been a specialist for universal and modular test and measurement systems. In the meantime, more than 25,000 DEWETRON measuring systems and over 400,000 measuring channels are in use worldwide.
