RESEARCH PROJECT FlaMe - Flexible customized manufacturing of power modules

Editor: Nicole Kareta

Worldwide, it is becoming increasingly important to be able to economically produce a wide range of power module variants in small quantities. Therefore Fraunhofer ISIT is participating in the FlaMe research project. The aim of the project is to use new technologies and make the process of manufacturing power modules significantly more sustainable.

Related Companies

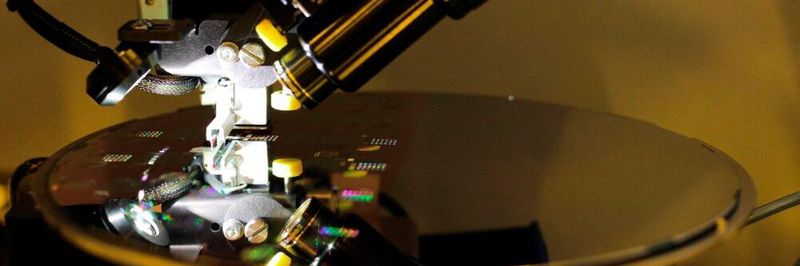

Ensuring the highest precision is one of the most important goals in the project.
Ensuring the highest precision is one of the most important goals in the project.
(Source: © Fraunhofer ISIT / Eric Shambroom Photography 2020)

An industrial machine is just as dependent on them as an electric car, a data center or charging stations - we are talking about power electronics. Switching power modules ensure that the power source and power consumer are compatible with each other and that electrical devices can function. Depending on the application, these power modules have to meet a wide variety of requirements. While the number of customer-specific product variants is steadily increasing, the associated unit numbers are declining.

WBG semiconductors and new manufacturing processes significantly save energy

Industry accounts for a good third of the energy consumed in Germany. Energy-efficient power modules and their energy-efficient production are therefore gaining in importance. Semiconductors with a wide bandgap (a physical characteristic of transistors), which are used in power modules, can make a decisive contribution to this.

Gallery

Conventional semiconductors are made of silicon, while WBG semiconductors are made of silicon carbide (SiC) or gallium nitride (GaN). The new materials reduce energy losses by more than 45 %. Based on the entire power module market, this means potential energy savings of up to 100 terawatt hours in the Europe, Middle East, Africa (EMEA) economic region and up to 25 terawatt hours in the U.S. by 2025. Together, this amounts to about one fifth of the electrical energy required by the whole of Germany in a year.

If power modules were also manufactured in an optimized process, energy savings of up to 20 % could also be achieved in their production. The project partners Siemens, Precitec Optronik, Precitec, F&K DELVOTEC Bondtechnik, and the scientific partners Friedrich-Alexander University Erlangen-Nuremberg and the Technical University of Munich, together with Fraunhofer ISIT, are now working on this in the currently launched FlaMe research project.

New production process for power modules is more flexible and fully automated

With the FlaMe research project, the project partners want to address the industry's requirements to be able to produce customer-specific power modules economically, with high quality as well as energy-efficiently at small batch sizes.

To this end, the scientists are replacing the conventional production process with highly flexible and fully automated manufacturing. This eliminates some energy-intensive manufacturing steps such as soldering oven processes. Accordingly, less energy is required and the production chain is shortened.

One focus of FlaMe is on using new technologies in the manufacturing process. These include, in particular, laser-based wire bonding, plasma spraying and 3D printing technology. These make it possible to control and target the energy input.

Highest precision: Combining industrial robots with sensor technology and artificial intelligence

Manufacturing high-quality power modules requires safe and very precise production steps. Moreover, when manufacturing several product variants, even in smaller quantities, the equipment and tools must be frequently adapted or modified.

To optimize the manufacturing processes, the team behind FlaMe plans to use innovative industrial robots as well as high-precision optical, thermal and acoustic sensors. In this way, the process can be precisely controlled, relatively easily modified and holistically monitored.

Using AI-based methods, the researchers evaluate process data and combine it with different sensor signals. The process results can thus be predicted more accurately and product variants can be manufactured more easily. Instead of complex mechanical modifications, only software adaptations will be necessary in the future.

FlaMe wants to promote sustainable production and use resources more efficiently

FlaMe is designed not only to make the production process more flexible and energy-efficient, but also to help use and save materials sustainably. Some components of a power module are made of aluminum. The project partners now want to replace this with copper. Copper ensures significantly higher power density and a longer service life for the power module. Both aspects mean that the total number of modules required is reduced. This reduces energy consumption both in raw material extraction and in the application. At the end of their service life, the pure copper connections are easier to reuse. The FlaMe research project thus makes an important contribution to the sustainable production and use of power modules.
