SIC POWER MODULE Low inductance fully ceramic SiC power module for high-temperature automotive applications

From Kirill Klein

Related Vendors

The developed fully ceramic SiC power module offers excellent themal performance and high reliability in high temperature automotive inverter applications. Superlative switching performance compared to conventional wire-bonded power modules reduces switching losses and therefore allows range extension of electric vehicles, and consequently lower system costs.

Kirill Klein achieved second place with "Low inductance fully ceramic SiC power module for high-temperature automotive applications" at the PCIM Young Engineer Award 2020.
Kirill Klein achieved second place with "Low inductance fully ceramic SiC power module for high-temperature automotive applications" at the PCIM Young Engineer Award 2020.
(Source: Power & Beyond)

Low Temperature Cofired Ceramic (LTCC) is up to now rarely used in power electronics. But its unique physical properties perfectly match Si, SiN and SiC. Furthermore LTCC makes possible a three-dimensional multilayer wiring power module structure offering low switching loss, excellent thermal performance and high reliability in high temperature applications.

Manufacturing

The depth of the cavities is matched to the height of the used SiC MOSFETs (Figure 1.1). Thus it is possible to sinter SiC MOSFETs into the cavities. After sintering the MOSFETs into the cavities the remaining space between the SiC MOSFET and the LTCC is filled with underfill to ensure functional isolation (Figure 1.2).

Then a backside contact of the chip with good thermal performance can be realized by sintering or soldering the LTCC with chips to a SI3N4-AMB substrate (Figure 1.3). SiN substrate provides the best mechanical robustness compared to other ceramic substrates as well as excellent thermal conductivity and is a reasonable choice for applications that require high reliability and high power density. The materials within the resulting fully ceramic assembly are well matched in terms of coefficient of thermal expansion (CTE). Therefore high reliability at high operation temperature is expected.

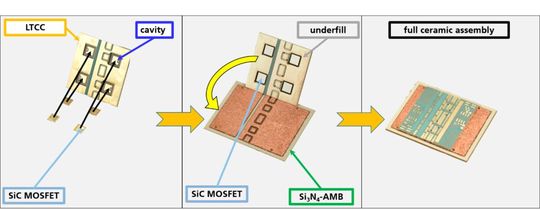

Figure 1: Manufacturing of the full ceramic assembly.
Figure 1: Manufacturing of the full ceramic assembly.
(Source: Kirill Klein)

Download full white paper now!

Read now the full white paper " Low inductance fully ceramic SiC power module for high-temperature automotive applications" by Kirill Klein, the winner of the second place of the PCIM Young Engineer Award 2020.

Download now!

Soldering of the Si3N4 bottom side to the 3D-printed Aluminum heat sink (Figure 2.1) completes the thermal path. But this heatsink is special: as shown in Figure 3 it has an extremely short thermal path from cooler surface to coolant. There is only 0.5 mm 3D printed Aluminum material between cooler surface and coolant.

Figure 2: Electromechanical low inductance system of the full ceramic assembly.
Figure 2: Electromechanical low inductance system of the full ceramic assembly.
(Source: Kirill Klein)

The overall thermal resistance from SiC MOSFET junction to coolant was measured at 0.8K/W/per chip. Such a ceramic assembly is capable of working at much higher temperatures than 150°C in, for example, a motor inverter. It is also possible to build thermal vias in the LTCC in order to realize double sided cooling.

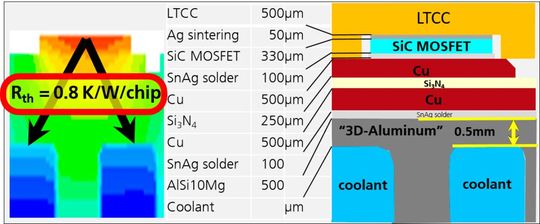

Figure 3: Ultra-short thermal path strategy allows low thermal resistance.
Figure 3: Ultra-short thermal path strategy allows low thermal resistance.
(Source: Kirill Klein)

But in our case we use another advantage of LTCC: It is possible to place SMD components directly on the top side surface. Thus we placed a DC link RC snubber and non-isolated gate driver circuit directly on the LTCC. Components of both are also capable of operating at 150°C (Figure 2.2). As a result we have a full switching cell inside the power module. The power module fulfils the two key electromagnetic conditions required for fast and oscillation-free switching. The first condition is low primary DC link inductance The yellow loop in Figure 4.

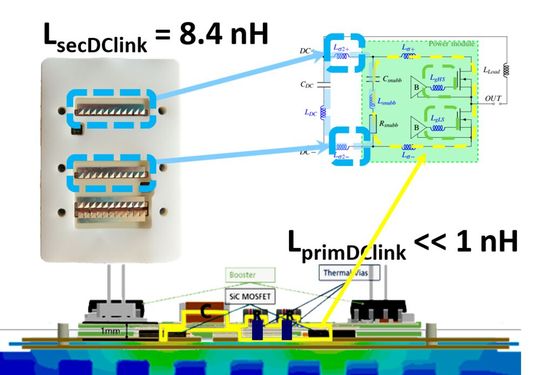

Low inductance current pathes of the power module.
Low inductance current pathes of the power module.
(Source: Kirill Klein)

The switching cell loop crosses both of the semiconductors, the primary dc link capacitor and the damping resistors.The damped DC link on top of the LTCC builds an ultra flat 30mm wide switching cell loop. As a result, the switching cell inductance is less than 1nH. Further DC link resistors are connected with thermal vias through the LTCC directly to the SiN substrate. Thus they absorb most of the resonant circuit energy within the switching cell in the switching moment, resulting in reduced thermal stresses in the semiconductors.

The second condition required for fast and oscillation-free switching is low gate inductance. A non-isolated gate driver circuit placed directly on the power module - close to the semiconductors - reduces the gate inductance (green loop in Figure 4) to less than 5nH. This ensures switching free of parasitic turn-on and reduces oscillations.

System integration

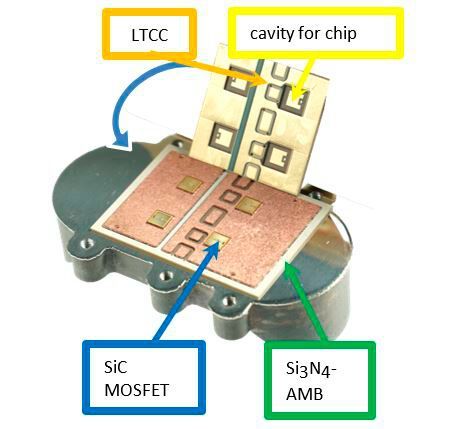

LTCC with cavities realizes top side die interconnection.
LTCC with cavities realizes top side die interconnection.
(Source: Kirill Klein)

Integration of such a core into the system is not trivial. Not only XYZ adjustment, but also basic insulation and low inductance high-current connections are required. A plastic frame (Figure 2.3) filled with standard silicone adjusts position of the ceramic assembly respective to the PCB and ensures basic isolation.

Low inductance high-current connectors are realized as 0.3mm flat multi-contact spring connectors. These reduce the stray inductance of the connection between the 200µF secondary DC link foil capacitor on the PCB and the RC snubber on top of the power module. Low inductance of the connection is crucial for fast switching performance. As a result we have only 8.4 nH of secondary DC link inductance, shown as blue loop in Figure 4.

Switching performance comparison

The nearly perfect low inductance system integration is evident in the switching forms shown in Figure 5.

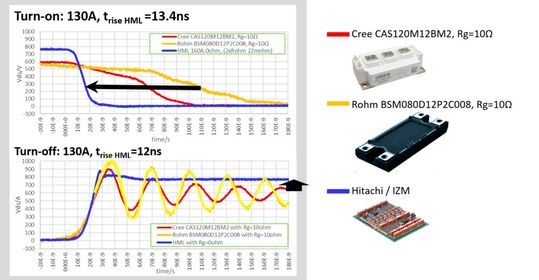

Figure 5: Switching waveform compared to wire-bonded power modules.
Figure 5: Switching waveform compared to wire-bonded power modules.
(Source: Kirill Klein)

Here we see a comparison of the switching behavior between two conventional wire-bonded power modules and the LTCC based power module. Conventional power modules switch on significantly more slowly and turn off with obvious oscillations.

The absence of the voltage overshoot and oscillations enables an increase of the allowable DC link voltage from 600 to 750V.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy.

Unfold for details of your consent

Summary

To summarize, the LTCC with cavities enables us to build a fully ceramic CTE matched assembly suited for high operation temperature. High thermal performance is achieved by an ultra-short thermal path from junction through the soldering layers, silicone nitride ceramics and 0.5mm thin 3D printed aluminum heat sink.

Ultra low DC link inductance, thanks to the DC link RC snubber placed directly on the power module, and low inductance system integration result in fast and oscillation-free switching of the power module. Low gate impedance ensures no parasitic turn-on and low turn-on losses. The power delivered by the LTCC based power module is high enough to power a 150kW motor inverter. This power module sets the standard in terms of clean high speed switching, combining it with low thermal resistance and high operating temperature. Both ceramic substrates (LTCC and SiN-AMB) are products of Hitachi Metals Ltd.
