New AEC qualified lidar integrated circuit from EPC

INTEGRATED CIRCUITS New AEC qualified lidar integrated circuit from EPC

29.04.2022From Johanna Erbacher

Efficient Power Conversion (EPC) introduces the latest addition to its family of automotive qualified transistors and integrated circuits offering higher performance and smaller solution size for time-of-flight (ToF) lidar applications including robotics, drones, 3D sensing, and autonomous cars.

Related Vendors

Nexperia B.V.

Power & Beyond - Mesago Messe Frankfurt GmbH

EA Elektro-Automatik GmbH & Co. KG

Rogers Corporation

PCIM Europe

more less

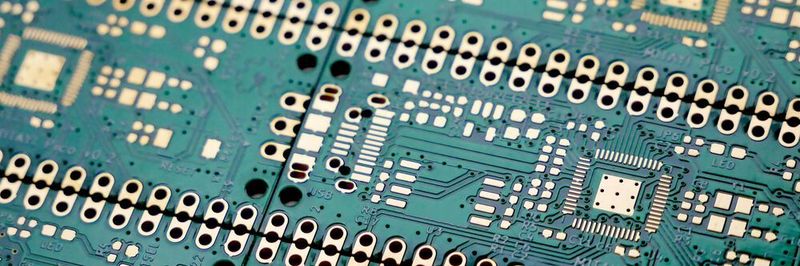

EPC is the leader in enhancement mode gallium nitride based power management and introduced a new AEC qualified lidar integrated circuit.
(Source: gemeinfrei / Unsplash)

EPC announces the introduction of the EPC2221, a common source dual gallium nitride FET rated at 100 V, 58 mΩ, and 20 A pulsed current. The FET can be used in lidar systems for robots, surveillance systems, drones, autonomous cars, and vacuum cleaners.

The low inductance and capacitance of the EPC2221 allows fast switching (100 MHz) and narrow pulse widths (2 ns) for high resolution and high efficiency. Additionally, the ultra-small size of 1.35 mm x 1.35 mm reduces PCB cost and total solution size.

#sponsored

In 2021, Broadcom expanded their industry-leading optocoupler portfolio with a new generation of gate drive devices. (Broadcom)

The EPC2221 is the latest addition to a growing family of GaN transistors and integrated circuits designed to meet the performance and reliability standards of demanding automotive applications. The EPC2221 has completed rigorous automotive AEC Q101 qualification testing including humidity testing with bias (H3TRB), high temperature reverse bias (HTRB), high temperature gate bias (HTGB), and temperature cycling (TC), as well as several other tests.

In addition to lidar in demanding automotive applications, the EPC2221 is perfectly suited for high-frequency DC-DC conversion, wireless power applications, and synchronous rectification.

“This new AEC certified product is the latest addition to a growing family of EPC gallium nitride-based transistors and integrated circuits designed to enable autonomous driving and improve safety,” said Alex Lidow, CEO, and co-founder of EPC. “This new integrated circuit improves the performance while reducing size and cost for time-of-flight lidar systems.”
