BATTERY TECHNOLOGY Production technology for solid state batteries

From Nicole Kareta

At the Center for Digitized Battery Cell Production at Fraunhofer IPA, process technology for the solid-state batteries of the future is being developed in collaboration with the medium-sized companies Dr. Fritsch Sondermaschinen GmbH and Dr. Fritsch GmbH & Co KG. The state of Baden-Württemberg (Germany) is funding the research project with over one million euros.

Related Vendors

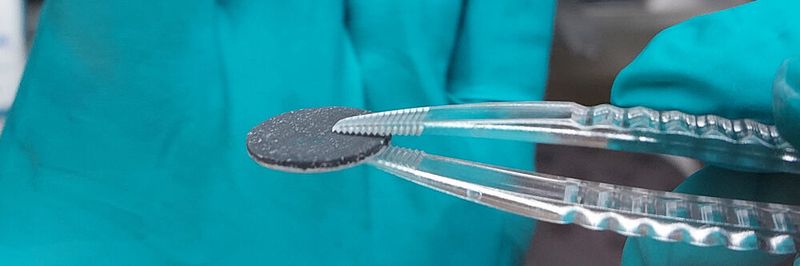

Multilayer, ceramic solid-state cathode for initial functional tests.
Multilayer, ceramic solid-state cathode for initial functional tests.
(Source: Fraunhofer IPA)

"Solid-state batteries have the potential to replace current battery technology," Carsten Glanz is convinced. Together with a team of scientists and two medium-sized companies from Baden-Württemberg, the group leader for application technology of functional materials at the Fraunhofer Institute for Manufacturing Engineering and Automation IPA wants to create the conditions for the automated production of high-quality electricity storage devices.

Compared with the lithium-ion batteries commonly used today, solid-state batteries have several advantages: Safety is higher - because no liquid electrolyte is needed, nothing can leak and ignite. They also have a higher energy density and a longer service life.

The technology is still in its infancy. "Solid-state batteries with an electrolyte layer made of ceramic, for example, have so far only been manufactured on a laboratory scale. The scalability - that is, the transfer of the results to large-scale production - is still completely unclear," explains Glanz.

In the project "Erforschung neuer Misch- und Sintertechnologien für gradierte keramische Festkörperelektrolyte" or EMSig for short (translated: "Research into new mixing and sintering technologies for graded ceramic solid-state electrolytes"), the engineer now wants to work with two industrial partners to develop and optimize a process chain for the large-scale production of batteries with ceramic solid-state electrolytes. "At the IPA, we have a lot of experience with automation in battery production through the Center for Digitized Battery Cell Production, and our cooperation partners have in-depth know-how regarding the production and functionalization, handling and sintering of powders."
